Bridge Health Monitoring System

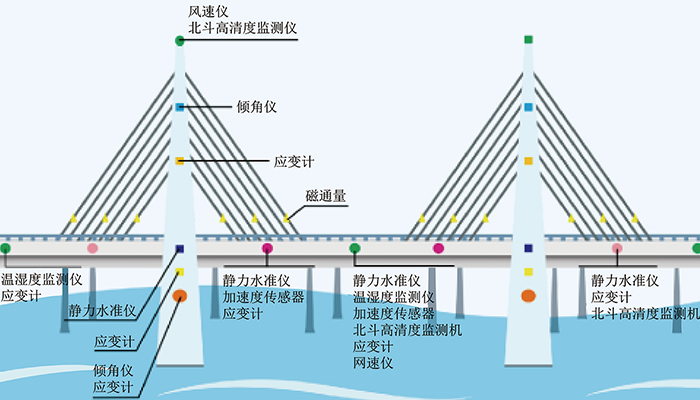

The long-term health online monitoring system for bridges, independently developed by ZhiYun Technology, combines Beidou high-precision positioning technology with various sensor monitoring technologies such as stress-strain, temperature, inclination, settlement, and meteorological sensors. It achieves all-weather, fully automatic real-time monitoring of the health status of bridges, providing reliable data support for road and bridge maintenance management departments, and safeguarding the safe operation of bridges.

000255

Application product

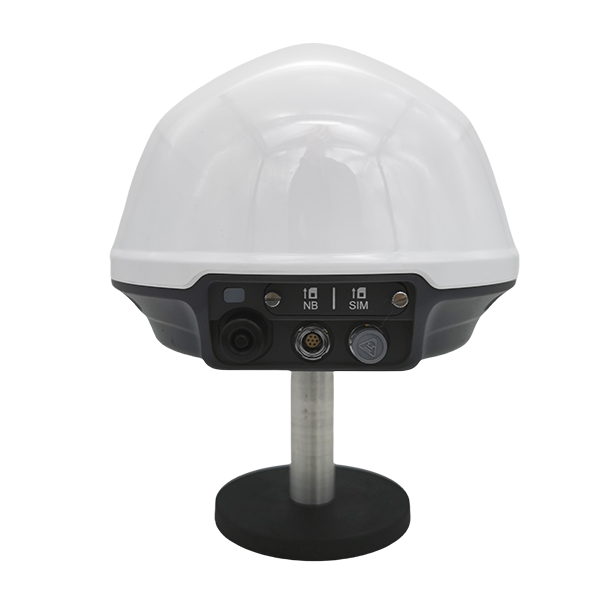

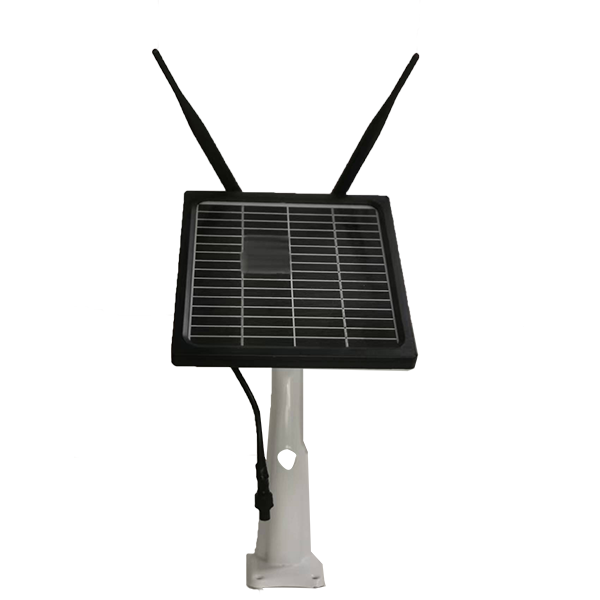

  • GNSS receiver

    GNSS receiver

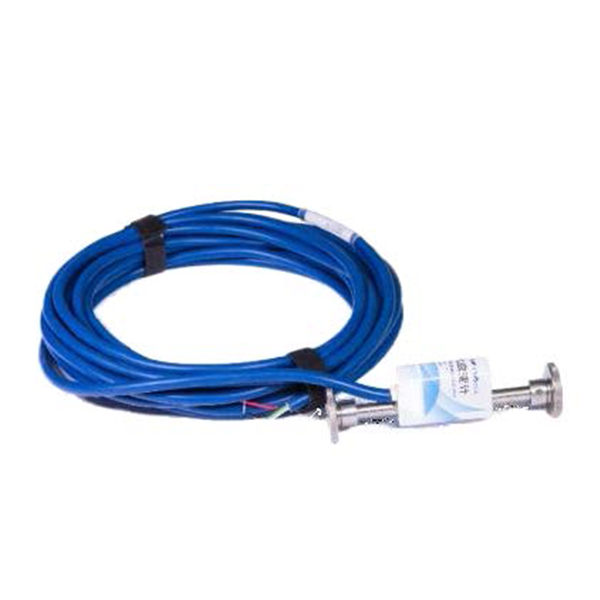

  • Magnetic flux

    Magnetic flux

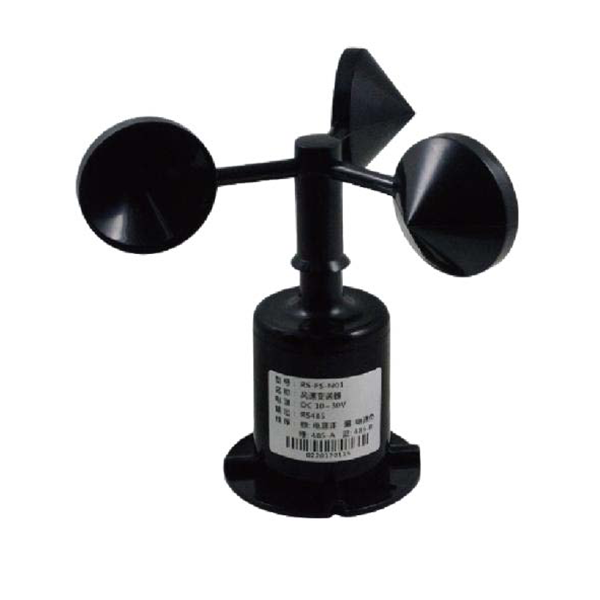

  • Wind direction and speed sensor

    Wind direction and speed sensor


  • Data acquisition instrument

    Data acquisition instrument

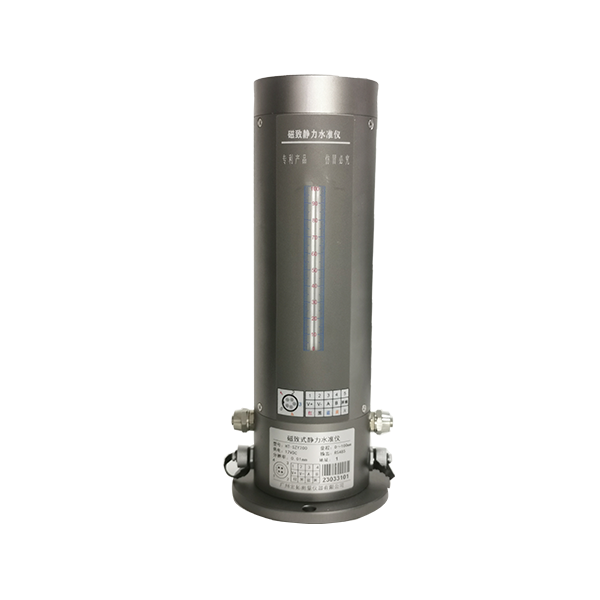

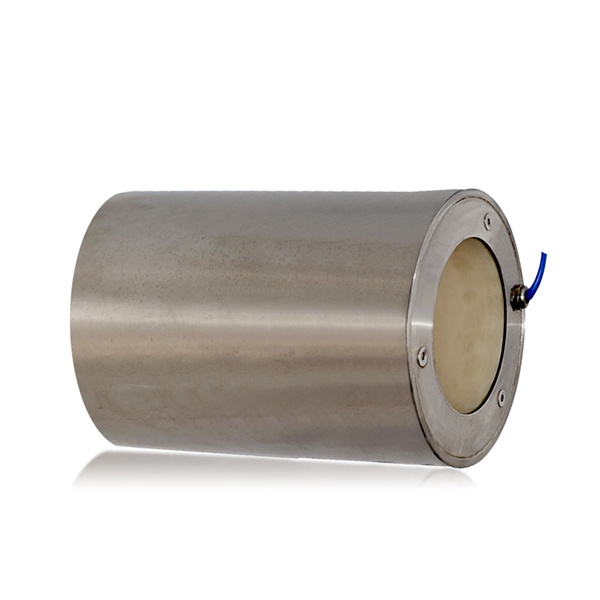

  • Static level

    Static level

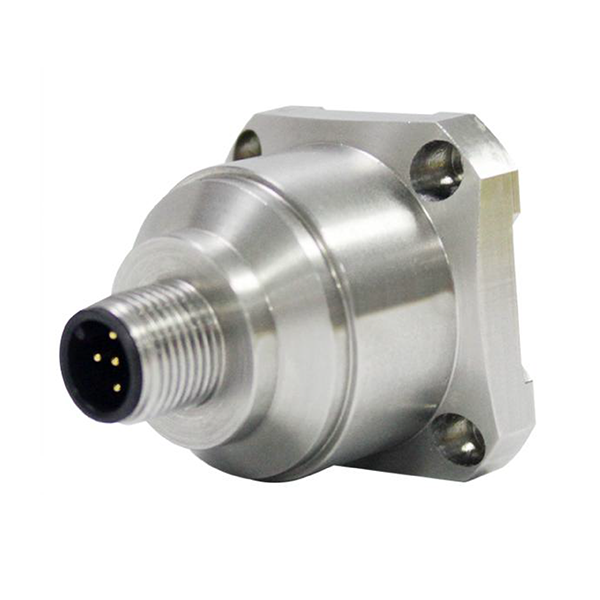

  • Accelerometer

    Accelerometer

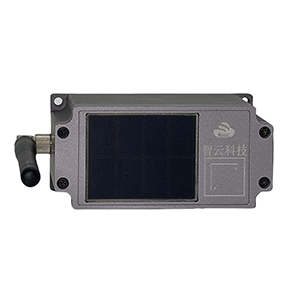

  • Wireless inclinometer

    Wireless inclinometer


  • Vibrating string strain gauge

    Vibrating string strain gauge



Product advantage

  • Timely warning of danger

    Data are uploaded and analyzed in real time. Once the data is abnormal, the cloud platform and the administrator`s mobile phone SMS double alarm, timely notification processing.


  • Strong stability

    The equipment can be used stably for more than 10,000 hours, helping the management unit long-term monitoring and avoiding the trouble of frequent equipment replacement.


  • Strong environmental adaptability

    The device can adapt to a variety of different layout scenarios, reduce wire connections, and avoid weather and environmental impacts.


  • Fully automated monitoring

    The bridge deformation, stress, environment, vibration frequency, cable and other factors are monitored 24 hours to grasp the overall safety of the bridge in real time

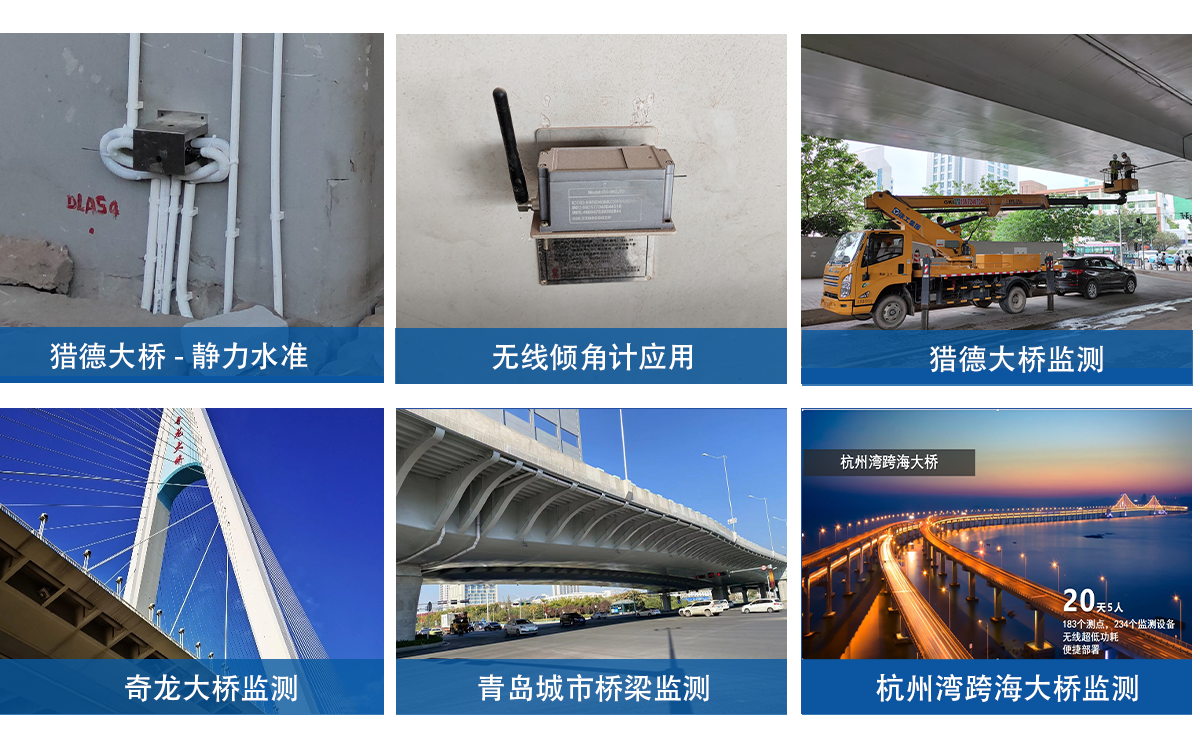

Application scenario
